Bridge Protective Gabion Mesh Basket Hexagonal Hole Rock Filled

Name: Bridge Protective Gabion Mesh Basket Hexagonal Hole Rock Filled
Brand: HBGB
Price: 1 USD

Buy cheap Bridge Protective Gabion Mesh Basket Hexagonal Hole Rock Filled product

Brand Name : HBGB

Model Number : GB-002

Certification : ISO 9001

Place of Origin : China

MOQ : 100PCS

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 pcs per day

Delivery Time : 10-25days

Packaging Details : compacted before packaging, in bundle

Product name : Hexagonal Gabion Basket

Material : Hot dipped galvanized iron wire

Zinc coating(g/m2) : 265-300

Tensile Strength : 350-550N/mm2

Weaving type : triple Twist

Wire gauge : 8 to 14

Mesh size : 60 x 80 mm; 80 x 100 mm;100 x 120 mm;

Basket size : 2*1*1, 3*1*1, 4*1*1m

Application : Flood, building, and construction water control and guidance

Contact Now

Bridge Protective Hexagonal Hole Rock Filled Gabion Mesh Basket

Hexagonal Gabion Basket Description:

A gabion (from Italian gabbione meaning "big cage"; from Italian gabbia and Latin cavea meaning "cage") is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering, road building, and military applications.

Material: Hot-dipped galvanized wire, Zn-5%-Al wire, Hot-dipped galvanized wire with PVC coated, Zn-10%-Al wire.
Weaving method: it is assembled with cover pieces; side pieces and bottom pieces are produced separately and then assembled to a basket with lacing wire or hog rings. It is common practice to choose a thicker wire to make selvedge wire, which can increase the strength of the basket.

Available mesh size of Hexagonal Gabion basket:

Decription	Gabion Box & Gabions & Rock Gabions
Wire Diameter	2.0 mm - 4.0 mm
Mesh Size	6080mm, 80100mm, 80120mm, 90110mm
Box Size	1m1m1m, 2m1m1m, 3m1m1m, 4m1m1m
Surface Treatment	PVC coated, electro or hot dipped galvanized
Payment Terms	T/T

Hexagonal basket available size:

Length (m)	Width (m)	Height (m)	Diaphragm	Volume (m3)	Tolerance
2.0	1.0	0.3	1	0.6	L:+/-3% W:+/-5% H:+/-5%
3.0	1.0	0.3	2	0.9
4.0	1.0	0.3	3	1.2
2.0	1.0	0.5	1	1.0
3.0	1.0	0.5	2	1.5
4.0	1.0	0.5	3	2.0
1.0	1.0	0.5	0	0.5
1.0	1.0	1.0	0	1.0
2.0	1.0	1.0	1	2.0
3.0	1.0	1.0	2	3.0
4.0	1.0	1.0	3	4.0

Gabion Mesh Basket Wire Tolerance:

On the hexagonal double-twisted wire mesh, size of opening should not exceed +/-5% on the nominal dimension

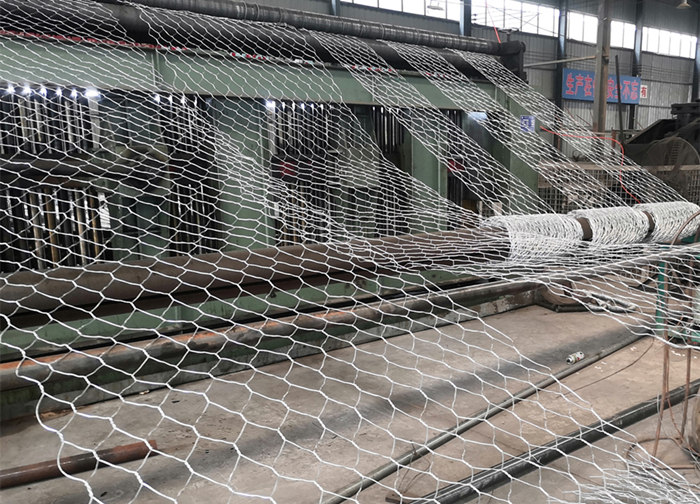

Process of production:

Application:

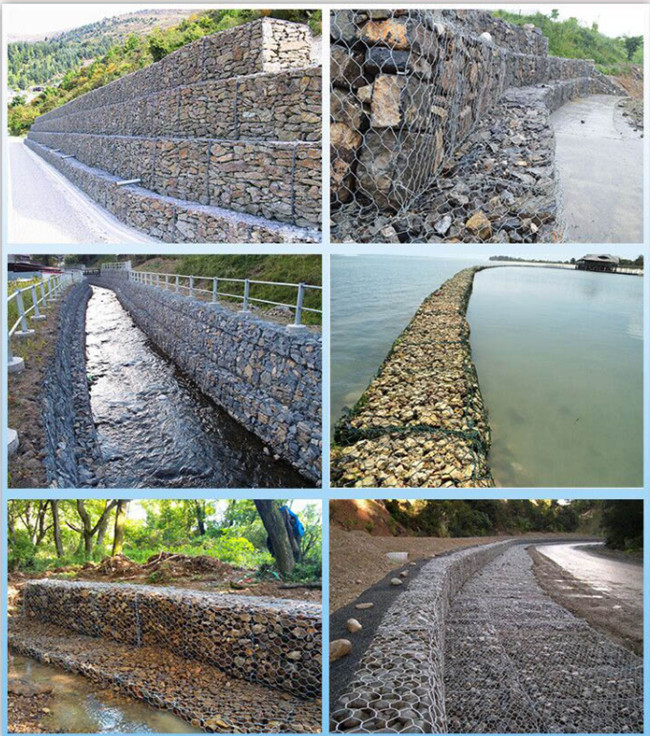

Retaining wall structures; Prevention of current scour and erosion control; Bridge protection; Hydraulic structures, dams and culverts; Embankment protection; Rockfall prevention and soil erosion protection.
