Hexagonal Metal Gabion Mesh Basket 1.0x1.0x0.5m PVC Coated

Name: Hexagonal Metal Gabion Mesh Basket 10x10x05m PVC Coated
Brand: HBGB
Price: 1 USD

Buy cheap Hexagonal Metal Gabion Mesh Basket 1.0x1.0x0.5m PVC Coated product

Brand Name : HBGB

Model Number : GB-002

Certification : ISO 9001

Place of Origin : China

MOQ : 50 PCS

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 pcs per day

Delivery Time : 10-25days

Packaging Details : compacted before packaging, in bundle

Product name : Gabion Mesh basket

Material : ion wire+ Geotexile gabion bags

Iron wire surface treatment : galvanized, galfan

Filled with : soil, sand

Wire diameter : popular 2.7mm

Hole shape : hexagonal

Aperture : 8 x 10 cm (standard)

Usage : dam, bank, river, slope protective mesh

Sample : sample for free; shipping cost paid by customers

Packing : compressed by machine and in bundle

Contact Now

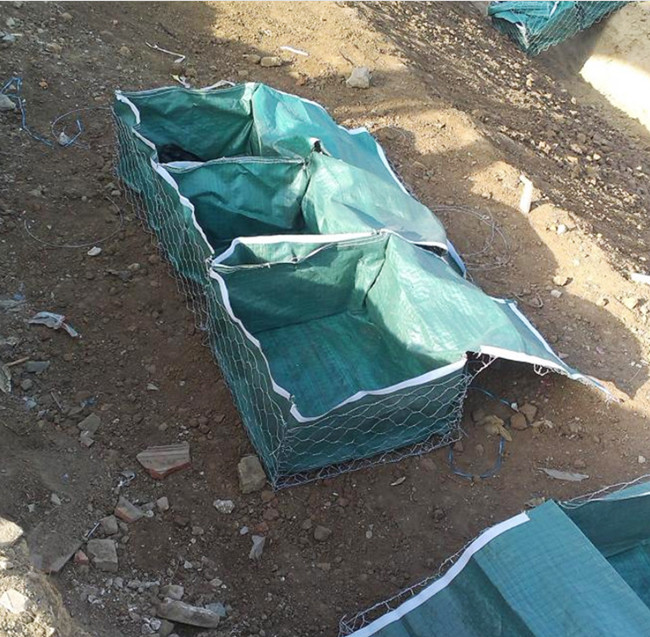

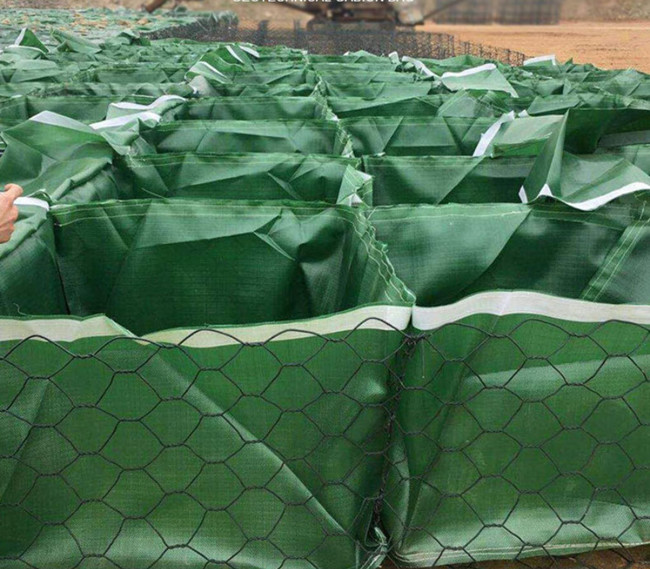

Hexagonal metal Gabion mesh basket with Green geotechnical gabion bag

Gabion Mesh Basket Introduction:

Gabion Mesh

Product Name: Gabion Box,Gabion Basket, Stone Cage, , Hexagonal Wire Mesh, Gabion Mesh, PVC Coated Gabion Box, Galfan Gabion Basket, Stone Gabion, Gabion Cage, Gabion Retaining Wall.

The stone cage bag is made of hexagonal gabion basket cage as the skeleton, PET polyester bag as the lining,the bag can be filled with soil,sand,gravel or gravel,can also be quickly formed in situ soil retaining structure,with soil protection slope prevention and planting and other functions

Gabion Mesh Basket Applications:

1. Controlling and leading the river and flood.
2. Flood discharge and lead flow.
3. Rock fall defending.
4. Preventing the water and soil lost.
5. Protecting the bridge.
6. Reinforce fabric.
7. Seashore recovery project.
8. Seaport project.

Geotechnical gabion bag Specifications:

Products name	geotextile gabion bag for flood control
Weight(specs)	300g/sq.m and 350g/sq.m other size can be customized
Certification	ISO and SGS
Regular size	1m1m1m 1.5m1m0.5m

Gabion Mesh Basket Specifications:

Mesh size and wire thickness
Gabion Boxes 80x100mm 100x120mm	Mesh Wire Dia.	2.70mm	Zinc coating: >260g/m2
	Edge Wire Dia.	3.40mm	Zinc coating: >275g/m2
	Tie Wire Dia.	2.20mm	Zinc coating: >240g/m2
Mattress 60x80mm	Mesh Wire Dia.	2.20mm	Zinc coating: >240g/m2
	Edge Wire Dia.	2.70mm	Zinc coating: >260g/m2
	Tie Wire Dia.	2.20mm	Zinc coating: >240g/m2
Special sizes are available.	Mesh Wire Dia.	2.00~4.00mm
	Edge Wire Dia.	2.70~4.00mm
	Tie Wire Dia.	2.00~2.20mm

Normal box size (m)	Mesh size (mm)	No. of diaphragms (no.)	Capacity per box (m3)
1.0x1.0x0.5	50x50 75x75 50x100 100x100	0	0.50
1.0x1.0x1.0		0	1.00
1.5x1.0x0.5		0	0.75
1.5x1.0x1.0		0	1.50
2.0x1.0x0.5		1	1.00
2.0x1.0x1.0		1	2.00
3.0x1.0x0.5		2	1.50
3.0x1.0x1.0		2	3.00
4.0x1.0x0.5		3	2.00
4.0x1.0x1.0		3	4.00
